CyberQ Cloud Wi-Fi Setup & Registration Guide

PART 1: Connect CyberQ to Your Home Wi-Fi

Step 1: Connect to the CyberQ Hotspot

1. On a Wi-Fi enabled phone, tablet, or computer, open Wi-Fi Settings.

2. Select:
   HS-MY_CYBERQ_####
   (or your custom CyberQ hotspot name)

3. Enter the default password if prompted:
   1234abcdef

4. Once connected, the controller will briefly display:
   “HOT-SPOT PAIRED!”

Step 2: Access the CyberQ Setup Page

1. Open a web browser.

2. Type the following into the address bar:
   192.168.101.10

3. Press Enter to load the internal CyberQ setup page.

Step 3: Open Wi-Fi Setup

1. Click “WI-FI SETUP” (top right corner).

2. Click the orange “Cloud Connection Wizard” button.

Step 4: Connect to Your Home Network

1. The CyberQ will scan for available Wi-Fi networks (up to 60 seconds).

2. Scroll down to see the list.

3. Find your home network.

4. Click “Join” under your network.

5. Enter your Wi-Fi password (if required).

6. Click Submit.

Step 5: Device Reboot & Infrastructure Mode

• The CyberQ will restart and connect through your home Wi-Fi.

• This is called Infrastructure Mode.

⚠ If You See “No Network”

• This usually means the Wi-Fi password was entered incorrectly.

• Reset the unit to factory settings:

  • Hold down all four arrow buttons

  • Wait until the screen says “Resetting EEPROM”

  • Repeat the setup process.

PART 2: Register Your CyberQ Cloud

Step 6: Wait for Reboot

After rebooting:

• The device will prompt you for a Registration PIN.

⚠ If Device Gets Stuck on “Connecting to Cloud”

• Make sure:

  • You are using a 2.4 GHz Wi-Fi network (5 GHz will not work).

  • There are no security devices interfering (example: security cameras).

Step 7: Go to ShareMyCook

1. On your Wi-Fi device, go back to the CyberQ internal page.

2. Click the yellow link to:
   sharemycook.com

3. Your device may automatically switch back to your regular Wi-Fi.

   • If not, manually reconnect to your home Wi-Fi in settings.

Step 8: Log In or Create Account

• If you already have an account → Log in.

• If not:

  1. Click “Sign Up”

  2. Fill out the form

  3. Click the orange “Sign Up” button

Step 9: Register Your Device

On the ShareMyCook (SMC) page:

1. Scroll down.

2. Click “Register Your CyberQ.”

Step 10: Enter Your 4-Digit PIN

1. You will receive a 4-digit PIN on screen.

2. On the CyberQ device:

   • Use the arrow buttons to enter the PIN.

   • Press the center (circle) button to submit.

Step 11: Registration Confirmation

• The device will verify registration.

• When successful, it will display:
  “Registration Successful.”

⚠ If PIN Expires or Is Lost

• Repeat the registration steps to generate a new PIN.

PART 3: Access Your Dashboard

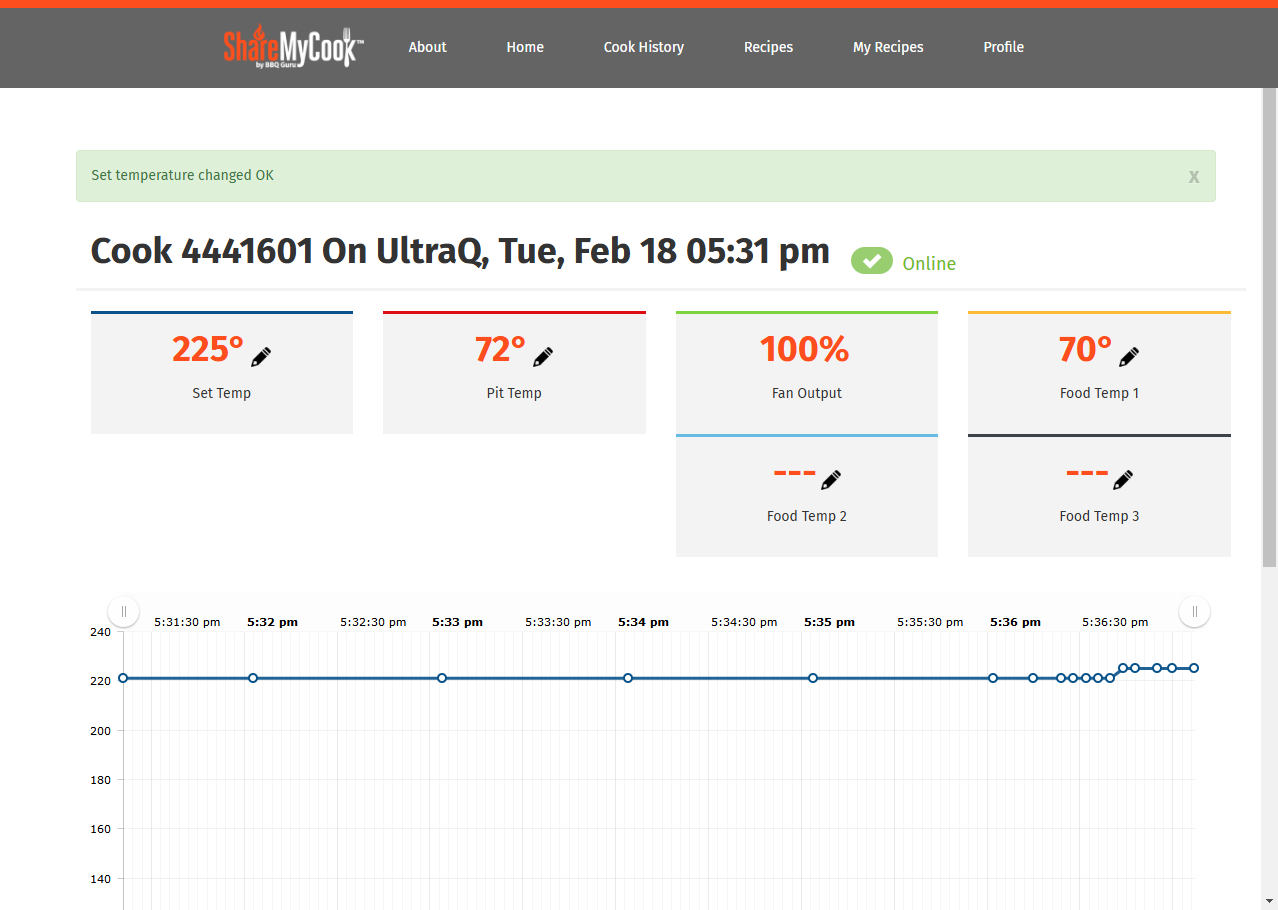

1. After registration, you will be taken to your SMC main dashboard.

2. To change settings:

   • Click the cook link with the current date.

✅ Setup Complete!

Next Steps allow you to monitor your CyberQ Cloud using ShareMyCook.com

1. Power on your CyberQ Cloud
2. Using your Smart Phone or WiFi-enabled device
3. Open a web browser to ShareMyCook
4. Login using the same credentials for your SMC in the mobile app

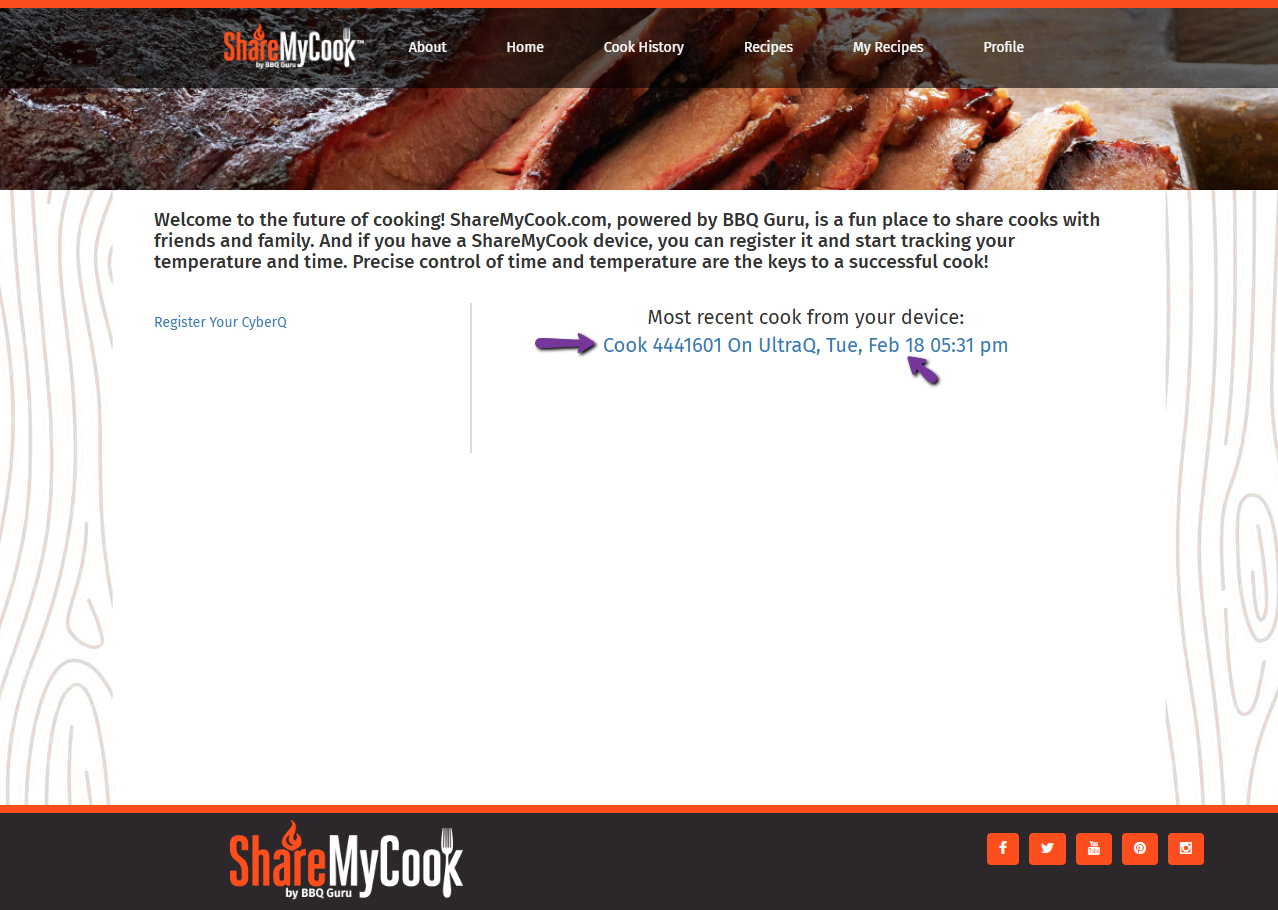

5. Select the hyperlink with the current date
